Bird-Friendly Laser Marking Machine
Marks bird-safe dots and lines on architectural glass without damaging its coatings.
An engineer follows up with firm pricing, and you can book a live online demo · A real engineer replies, not a call center
What is built into the Bird-Friendly Laser Marking Machine.
Bird-safe marking, coatings intact
The laser marks dots and lines on the outer glass surface without damaging the coatings, so the glass meets bird-friendly building codes while keeping its performance.
Irregular patterns
The machine handles irregular dot and line patterns, giving architects freedom in how the bird-safe markings appear.
Low-E film placed upward, no damage
Low-E coated glass can be processed with the film placed upward, and the marking does not damage the coating.
All-Yaskawa servo motors
Every axis runs on Yaskawa servo motors for accurate, repeatable positioning across the large work area.
Independent cooling and dust removal per laser
Each laser has its own water-cooling and dust-removal system, so the machine stays accurate and clean over continuous large-format runs.
3 glass processes, one platform.
See the work come off the bed.

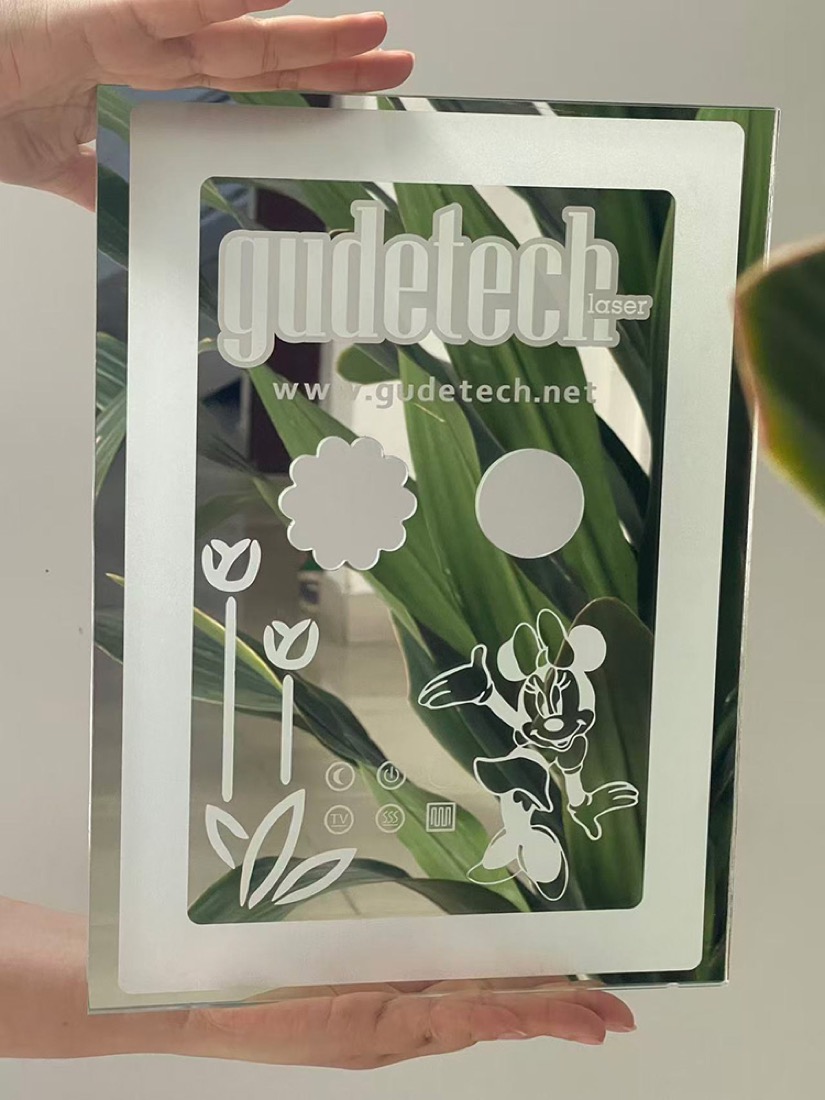

Real laser-processed glass from our shop floor. Tell us your part for the Bird-Friendly Laser Marking Machine and an engineer will follow up with firm pricing and a live online demo.
Sample
Sample
Sample
Sample
Sample
SampleThe full spec.
| Work area | 3000 × 4000 mm (118.1 × 157.5 in) (GDJGSK3040) |
| Machine footprint | 10340 × 8000 mm (407.1 × 315 in) |
| Weight | 14 ton |
| Laser power | 35 W |
| Marking | Dots and lines on outer glass surface |
| Coatings | Not damaged during marking |
| Low-E handling | Film placed upward, no damage |
| Patterns | Irregular supported |
| Servo motors | All Yaskawa |
| Cooling | Independent water-cooling per laser |
| Dust removal | Independent per laser |
| Model | X (mm · in) | Y (mm · in) | Structure |
|---|---|---|---|
| GDJGSK3040 | 3000 · 118.1 | 4000 · 157.5 | Gantry |
What it's used for.
Request a quote for the Bird-Friendly Laser Marking Machine.
Tell us your glasstype, thickness and part sizes, and the process you need, and we'll configure the machine and send a quote. Want proof first? Ask an engineer for a live online demo.
